Product Summary

The 300U40A is a standard recovery diode. Typical applications of the 300U40A are welders, power supplies, motor controls, battery chargers, general industrial current rectification.

Parametrics

300U40A absolute maximum ratings: (1)IF(AV)@ TC 150 ℃: 300 A; (2)IFSM @50Hz 6550 A, @ 60Hz 6850 A; (3)I2t @50Hz 214 KA2s, @ 60Hz 195 KA2s; (4)VRRM range: 100 to 600 V; (5)TJ: -65 to 200 ℃.

Features

300U40A features: (1)Alloy diode; (2)Popular series for rough service; (3)Stud cathode and stud anode version.

Diagrams

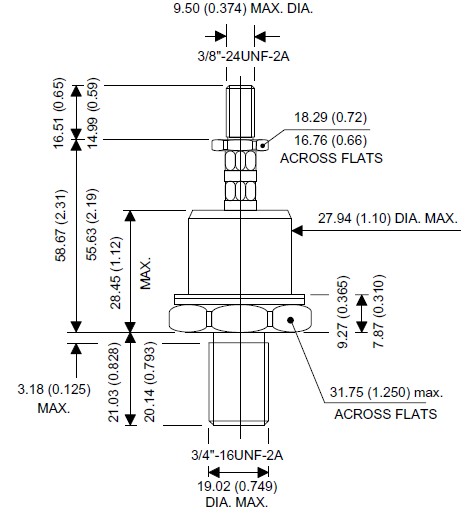

300U40A dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
300U40A
300U40A

DIODE 400V 300A DO9
Data Sheet
0-1: $19.38
1-10: $17.92
10-100: $15.26
100-250: $14.05
250-500: $13.32
500-1000: $12.60
1000-2500: $12.21
2500-5000: $11.87
5000-10000: $11.63
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
300U
300U
Other

Data Sheet
Negotiable
300U(R)
300U(R)
Other

Data Sheet
Negotiable
300U10A
300U10A

DIODE STD REC 100V 300A DO-9
Data Sheet
0-12: $26.99
300U120 3/4
300U120 3/4" UNF
Ruttonsha
Diodes (General Purpose, Power, Switching) 300 Amp 1200 Volt
Data Sheet
0-1: $15.32
1-10: $13.32
10-100: $12.32
100-500: $11.32
300U120A G R G
300U120A G R G

DIODE 1200V 300A COM CATH DO-9
Data Sheet
Negotiable
300U20A
300U20A

DIODE STD REC 200V 300A DO-9
Data Sheet
0-12: $27.41
