Product Summary

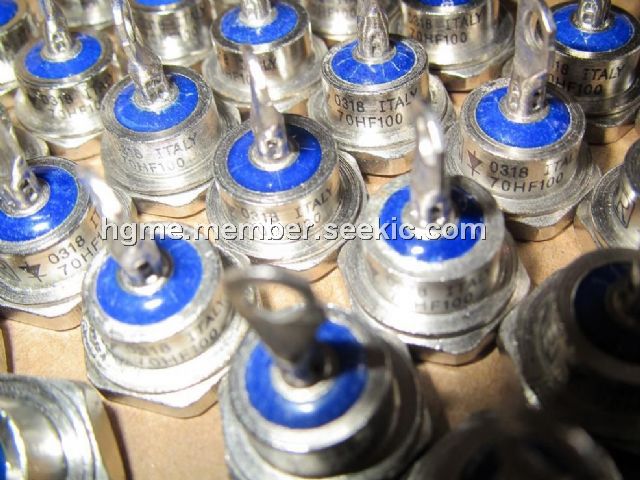

The 70HF100 is a standard recovery diode. It is widely applied in converters, power supplies, machine tool controls and battery charges.

Parametrics

70HF100 absolute maximum ratings: (1)IF(AV): 70A; (2)IF(RMS): 110A; (3)IFSM, @50 Hz: 1200A; (4)I2t, @50 Hz: 7100A2s; (5)VRRM: 1400/1600 V; (6)TJ: -65 to 180℃.

Features

70HF100 features: (1)High surge current capability; (2)Designed for a wide range of applications; (3)Stud cathode and stud anode version; (4)Leaded version available; (5)Types up to 1600 V VRRM; (6)Compliant to RoHS directive 2002/95/EC; (7)Designed and qualified for industrial level.

Diagrams

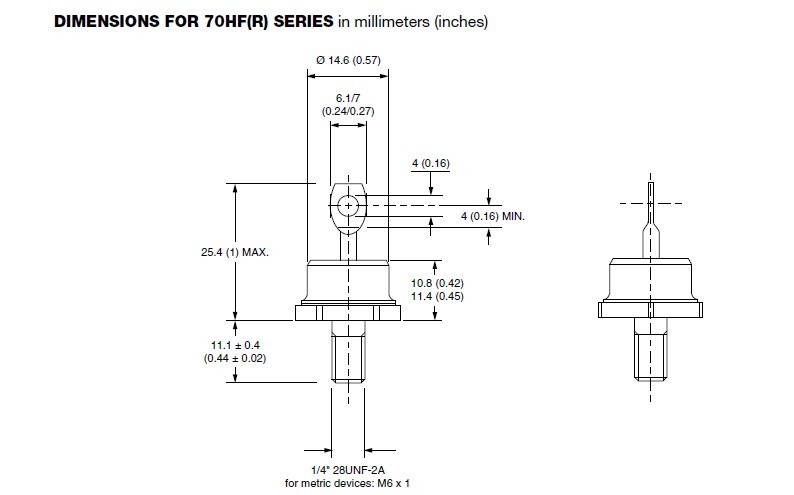

70HF100 DIMENSIONS

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
70HF100
70HF100

DIODE STD REC 1000V 70A DO-5
Data Sheet
0-1: $6.83
1-10: $6.21
10-25: $5.75
25-100: $5.28
100-250: $4.81
250-500: $4.50
500-1000: $4.13
1000-2500: $3.96
2500-5000: $3.85
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
70HF10
70HF10

DIODE STD REC 100V 70A DO-5
Data Sheet
0-1: $4.79
1-10: $4.31
10-25: $3.92
25-100: $3.54
100-250: $3.25
250-500: $2.97
500-1000: $2.58
1000-2500: $2.49
2500-5000: $2.39
70HF100
70HF100

DIODE STD REC 1000V 70A DO-5
Data Sheet
0-1: $6.83
1-10: $6.21
10-25: $5.75
25-100: $5.28
100-250: $4.81
250-500: $4.50
500-1000: $4.13
1000-2500: $3.96
2500-5000: $3.85
70HF120
70HF120

DIODE FAST REC 1200V 70A DO-5
Data Sheet
0-1: $8.57
1-10: $7.79
10-25: $7.20
25-100: $6.62
100-250: $6.04
250-500: $5.65
500-1000: $5.18
1000-2500: $4.96
2500-5000: $4.83
70HF140
70HF140

DIODE FAST REC 1400 85A DO-5
Data Sheet
0-100: $5.45
70HF160
70HF160

DIODE FAST REC 1600V 70A DO-5
Data Sheet
0-1: $7.48
1-10: $6.80
10-25: $6.29
25-100: $5.78
100-250: $5.27
250-500: $4.93
500-1000: $4.52
1000-2500: $4.34
2500-5000: $4.22
