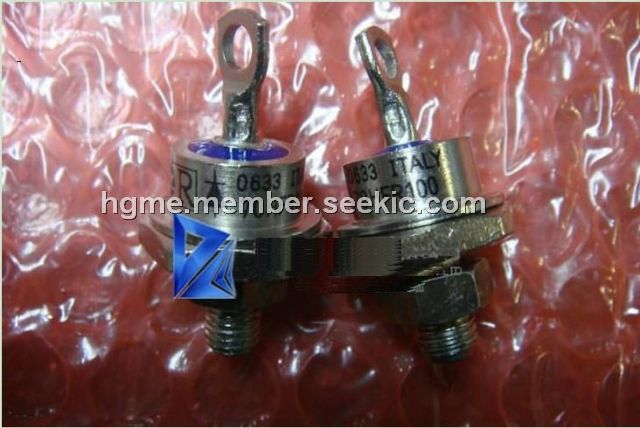

Product Summary

The 70HFR100 is a standard recovery diode suitable for Battery charges, Converters, Power supplies and Machine tool controls.

Parametrics

70HFR100 absolute maximum ratings: (1)IF(AV): 70A; (2)IF(RMS): 110 A; (3)IFSM @ 50Hz: 1200 A; @ 60Hz: 1250 A; (4)I2t@ 50Hz: 7100 A2s; @ 60Hz 6450 A2s; (5)VRRM range: 100 to 1200V; (6)TJ range: - 65 to 180℃.

Features

70HFR100 features: (1)High surge current capability; (2)Designed for a wide range of applications; (3)Stud cathode and stud anode version; (4)Leaded version available; (5)Types up to 1600V VRRM.

Diagrams

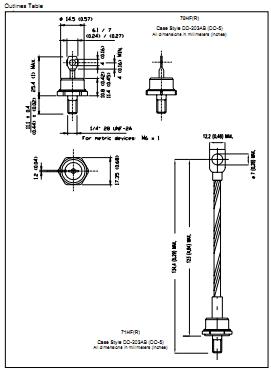

70HFR100 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
70HFR100
70HFR100


DIODE STD REC 1000V 70A DO5

Data Sheet

0-1: $7.96
1-10: $7.23
10-25: $6.69
25-100: $6.15
100-250: $5.61
250-500: $5.24
500-1000: $4.81
1000-2500: $4.61
2500-5000: $4.48
