Product Summary

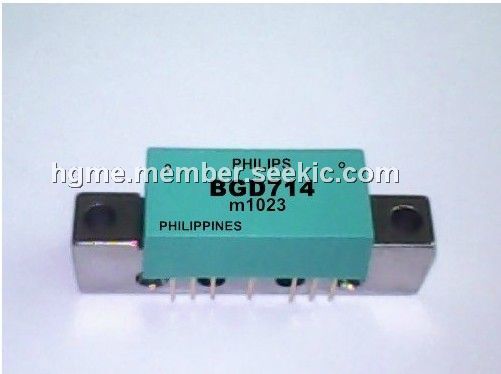

The BGD714 is a Hybrid amplifier module in a SOT115J package operating with a voltage supply of 24 V (DC). It is for CATV systems operating in the 40 to 750 MHz frequency range.
Parametrics
BGD714 absolute maximum ratings: (1)VB supply voltage: 30 V; (2)Vi input voltage: 70 dBmV; (3)Tstg storage temperature: -40 +100 ℃; (4)Tmb mounting base temperature: -20 +100 ℃.
Features
BGD714 features: (1)Excellent linearity; (2)Extremely low noise; (3)Excellent return loss properties; (4)Silicon nitride passivation; (5)Rugged construction; (6)Gold metallization ensures excellent reliability.

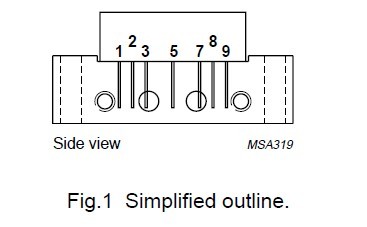

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BGD714 |
NXP Semiconductors |
RF Amplifier CATV MODULES |
Data Sheet |
Negotiable |
|
|||||||||||
BGD714,112 |
NXP Semiconductors |
RF Amplifier CATV MODULES |
Data Sheet |
|
|
