Product Summary
The BGE887BO/FC is a Hybrid high dynamic range optical receiver module in a SOT115N package operating at a voltage supply of 24 V (DC). The module contains a monomode optical input suitable for wavelengths from 1290 to 1600 nm, a terminal to monitor the pin diode current and an electrical output with an impedance of 75 W. The optical fibre is terminated by an FC/APC connector (JDS version) and partly reinforced by a 3 mm diameter Kevlar buffer. The applications of the BGE887BO/FC are CATV systems operating in the 40 to 860 MHz frequency range.
Parametrics
BGE887BO/FC absolute maximum ratings: (1)f frequency range: 40 to 860 MHz; (2)Tstg storage temperature: -40 to +85 ℃; (3)Tmb operating mounting base temperature: -20 +85 ℃; (4)Pin optical input power continuous: 5 mW; (5)ESD ESD sensitivity: 500 V.
Features
BGE887BO/FC features: (1)Excellent linearity; (2)Extremely low noise; (3)Excellent flatness; (4)Standard CATV outline; (5)Rugged construction; (6)Gold metallization ensures excellent reliability; (7)FC/APC connector (JDS version).

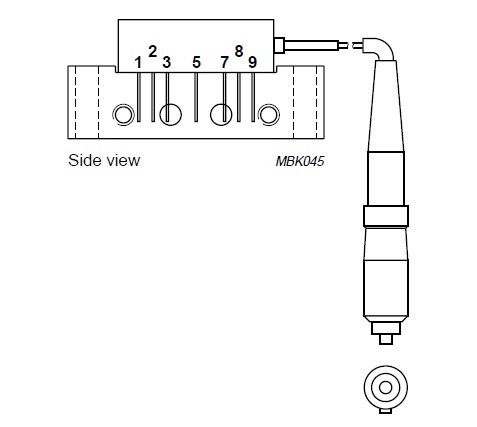

Diagrams
