Product Summary

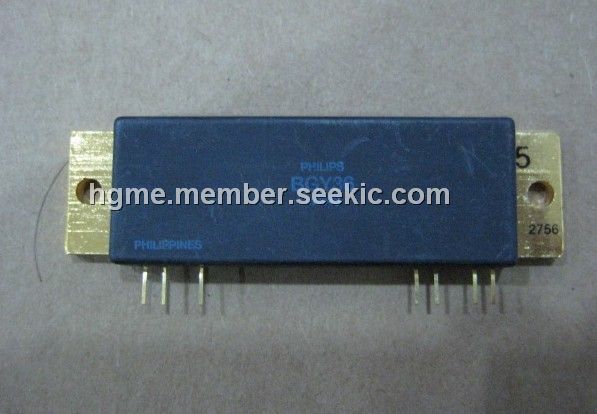

The BGY36 is a two stage amplifier module in a SOT132B package. Each module comprises two NPN silicon planar transistor dies together with lumped-element matching components. Appication of the BGY36 is mobile communication quipment.

Parametrics

BGY36 absolute maximum ratings: (1)VS1 DC supply voltage: 15 V; (2)VS2 DC supply voltage: 15 V; (3)PD input drive power: 200 mW; (4)PL load power: 30 W; (5)Tstg storage temperature: -40 +100 ℃; (6)Tmb operating heatsink temperature: +90 ℃.

Features

BGY36 features: (1)Broadband VHF amplifiers; (2)18W output power; (3)Direct operation from 12V vehicle electrical systems.

Diagrams

BGY36 outline
