The MG600J2YS60A is a toshiba igbt module.
Parametrics
MG600J2YS60A absolute maximum ratings: (1)Collector-emitter voltage VCES: 600 V; (2)Gate-emitter voltage VGES: ±20 V; (3)Collector power dissipation (Tc= 25°C) PC: 2770 W; (4)Control voltage (OT) VD: 20 V; (5)Control Fault input voltage VFO: 20 V; (6)Fault input current IFO: 20 mA; (7)Junction temperature Tj: 150 °C; (8)Storage temperature range Tstg: -40~125 °C; (9)Operation temperature range Tope :-20~100 °C; (10)Isolation voltage Visol: 2500 (AC 1 min) V.
Features

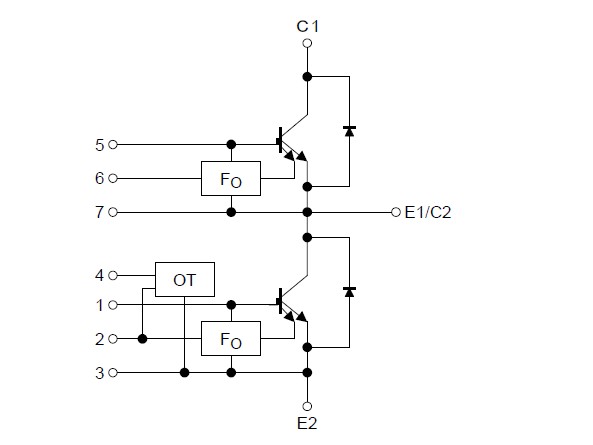

MG600J2YS60A features: (1)Integrates a complete half bridge power circuit and fault-signal output circuit in one package. (short circuit and over temperature); (2)The electrodes are isolated from case.; (3)Low thermal resistance; (4)VCE (sat) = 2.1 V (typ.).
