Product Summary

The PD6016 is a diode module.

Parametrics

PD6016 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage: 1200V; (2)Non Repetitive Peak Reverse Voltage: 1300V; (3)Average Rectified Output Current: 60 A; (4)RMS Forward Current: 94 A; (5)Surge Forward Current: 1200 A; (6)Operating JunctionTemperature Range: -40 to +125 ℃; (7)Storage Temperature Range Tstg: -40 to +125 ℃; (8)Isoration Voltage Viso: 2500 V.

Features

PD6016 features: (1)Isolated Base; (2)Dual Diodes Cathode Common and Cascaded Circuit; (3)High Surge Capability; (4)UL Recognized, File No. E187184.

Diagrams

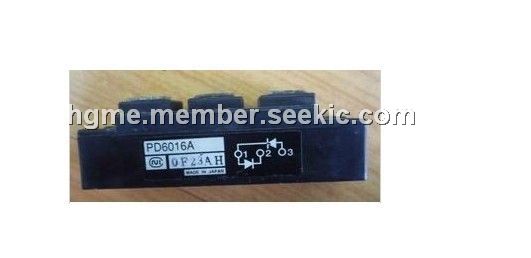

PD6016 diagram
