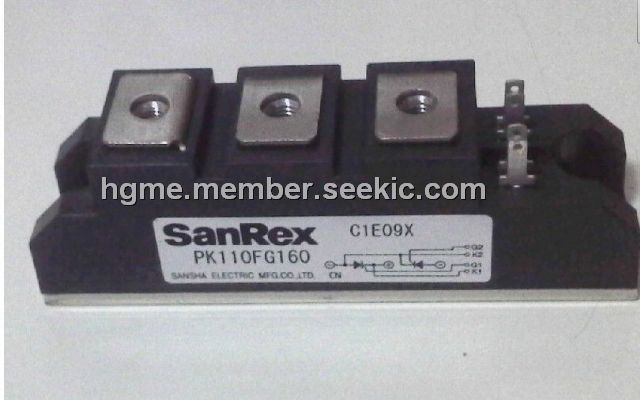

The PK110FG160 is a thyristor module. The PK110FG160 is designed for various rectifier circuits and power controls. For your circuit application, following internal connections and wide voltage ratings up to 1600V are available. and electrically isolated mounting base make your mechanical design easy.
Parametrics
PK110FG160 absolute maximum ratings: (1)VRRM Repetitive Peak Reverse Voltage: 1600V; (2)VRSM Non-Repetitive Peak Reverse Voltage: 1700v; (3)VDRM Repetitive Peak off-state Voltage: 1600V; (4)It(av)Average On-state Current Single phase, halfwave, 180° conduction, Tc=81℃: 110A; (5)It(rms)R.M.S. On-state Current Single phase, halfwave, 180° conduction, Tc=8TC: 172A; (6)Itsm Surge On-state Current 1/2 Cycle, 50/60Hz, Peak Value, non-repetitive: 2740/3000A; (7)l2t l2t Value for one cycle surge current: 37500 A2S; (8)Pgm Peak Gate Power Dissipation: 10 W; (9)Pg(av)Average Gate Power Dissipation: 1W; (10)Ifgm Peak Gate Current: 3A; (11)Vfgm Peak Gate Voltage (Forward): 10V; (12)Vrgm Peak Gate Voltage (Reverse): 5V; (13)Viso Isolation Breakdown Voltage (R.M.S.)A.C. 1 minute: 2500V; (14)Tj Operating Junction Temperature: -40 to +125℃; (15)Tstg Storage Temperature: -40 to +125℃.
Features
PK110FG160 features: (1)IT(AV)110A, IT(RMS)172A, ITSM 3000A; (2)di/dt 100A/μs; (3)dv/dt 1000V/μs.

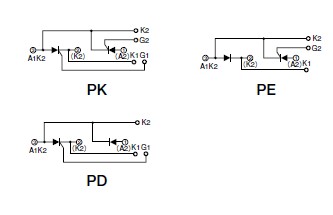

Diagrams
