Product Summary

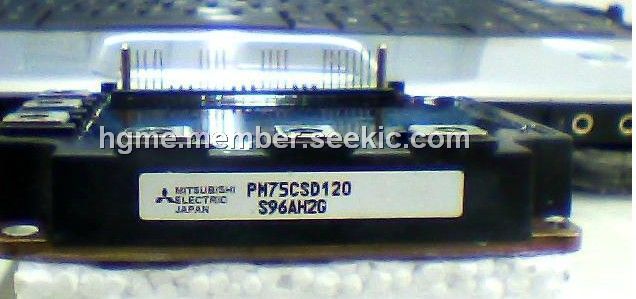

The PM75CSD120 is a Mtsubishi Intelligent Power Module. The PM75CSD120 is isolated base module designed for power switching applications operating at frequencies to 20kHz. Built-in control circuits provide optimum gate drive and protection for the IGBT and free-wheel diode power devices. The applications of the PM75CSD120 include Inverters, UPS, Motion/Servo Control and Power Supplies.

Parametrics

PM75CSD120 absolute maximum ratings: (1)Power Device Junction Temperature, Tj: -20 to 150℃; (2)Storage Temperature, Tstg: -40 to 125℃; (3)Case Operating Temperature, TC: -20 to 100℃; (4)Mounting Torque, M5 Mounting Screws: 31 inlb; (5)Mounting Torque, M5 Main Terminal Screws: 31 inlb; (6)Module Weight (Typical): 560 Grams; (7)Supply Voltage Protected by OC and SC (VD = 13.5 - 16.5V, Inverter Part) VCC(prot.): 800 Volts; (8)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.), Viso: 2500 Vrms.

Features

PM75CSD120 features: (1)Complete Output Power Circuit; (2)Gate Drive Circuit; (3)Protection Logic: Short Circuit; Over Current; Over Temperature; Under Voltage.

Diagrams

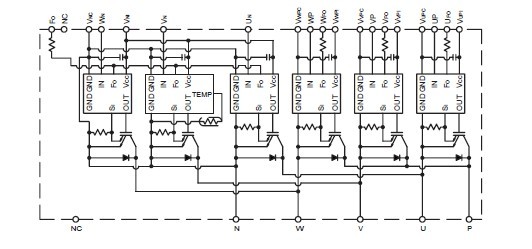

PM75CSD120 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PM75CSD120
PM75CSD120

MOD IPM S-DASH 1200V 75A
Data Sheet
0-1: $183.80
