Product Summary

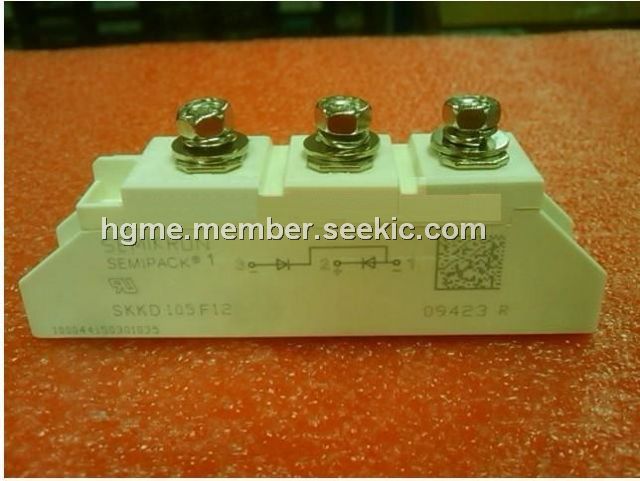

The SKKD105F12 is a Fast Diode Module. The applications of the SKKD105F12 include self-commutated inverters, DC choppers, AC motor speed control, Inductive heating, Electronic welders, general power switching applications.
Parametrics
SKKD105F12 absolute maximum ratings: (1)IFAV: 102/65 A at Ts=45℃; (2)IFSM: 2500 A at Tvj=25℃; 10ms; (3)i2t: 31250 A2s at Tvj=25℃; 8,3,10ms; (4)VF: 2.05 V max at Tvj=25℃, IF=300A; (5)V(TO): 1.2V max at Tvj=130℃; (6)IRD: 1 mA max at Tvj=130℃, VRD=VRRM.
Features
SKKD105F12 features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)hard sodered joints for high reliability; (3)SKKD half bridge connection center-tap connections; (4)UL recognized, file no. E 63 532.

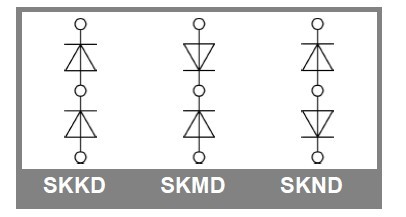

Diagrams
 |
