Product Summary

The SKKH72/16E is a Diode Module. The applications of the SKKH72/16E are: (1)DC motor control; (2)AC motor soft starters; (3)Temperature control; (4)Professional light dimming.

Parametrics

SKKH72/16E absolute maximum ratings: (1)ITAV: 70A; (2)ID: 62A; (3)IRMS: 155A; (4)ITSM: 1600A; (5)i2t: 13000 A2s; (6)VT: 1.9V; (7)tq: 80μs; (8)Tvj: -40 to 125℃.

Features

SKKH72/16E features: (1)Heat transfer through aluminium oxide ceramic isolated metal basepalte; (2)Hard soldered joints for high reliability; (3)UL recognized, file no E 63 532.

Diagrams

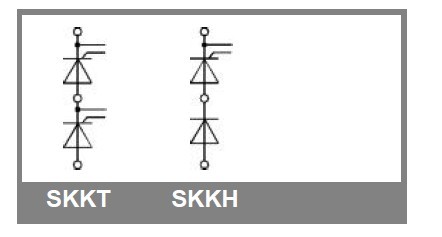

SKKH72/16E diagram
