Product Summary
The SKKT132/14E is a Thyristor / Diode Module. The applications of the SKKT132/14E are: (1)DC motor control; (2)Temperature control; (3)Professional light dimming.
Parametrics
SKKT132/14E absolute maximum ratings: (1)ITAV: 137A; (2)ID: 77/100A; (3)IRMS: 240A; (4)ITSM: 4700A; (5)i2t: 110000A2s; (6)Tvj: -40 to 125℃; (7)Tstg: -40 to 125℃.
Features
SKKT132/14E features: (1)heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no E 63532.

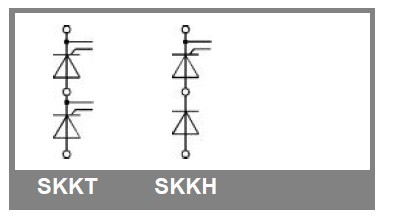

Diagrams
 |
