Product Summary

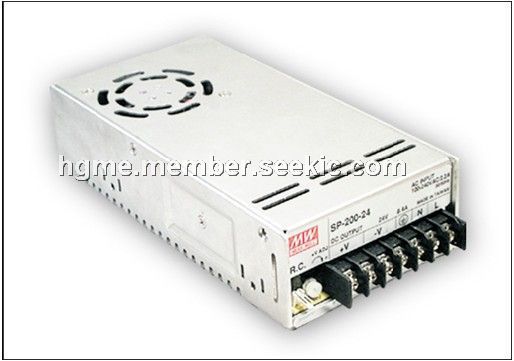

The SP-200-24 is a 200W Single Output with PFC Function.

Parametrics

SP-200-24 specifications: (1)dc voltage: 24V; (2)rated current: 8.4A; (3)current range: 0 to 8.4A; (4)rated power: 201.6W; (5)RIPPLE & NOISE (max.): 150mVp-p; (6)voltage adj. range: 22.8 to 26.4V; (7)voltage tolerance: 1.0%; (8)line regulation: 0.5%; (9)load regulation: 0.5%; (10)setup, rise time: 600ms, 30ms at full load; (11)hold up time (typ.): 50ms at full load; (12)voltage range: 85 to 264VAC, 120 to 370VDC; (13)frequency range: 47 to 63Hz; (14)efficiency(typ.): 83%; (15)ac current (typ.): 3.5A/115VAC, 1.7A/230VAC; (16)inrush current (typ.): COLD START 45A; (17)leakage current: <2mA / 240VAC.

Features

SP-200-24 features: (1)Universal AC input / full range; (2)Built-in active PFC function, PF>0.93; (3)Protections: Short circuit / Overload / Over voltage / Over temperature; (4)Built-in cooling fan speed control; (5)Built-in constant current limiting circuit; (6)Built-in fan speed control; (7)Remote ON-OFF control(Optional); (8)LED indicator for power on; (9)100% full load burn-in test; (10)Fixed switching frequency at PFC:67KHz PWM:134KHz; (11)3 years warranty.

Diagrams

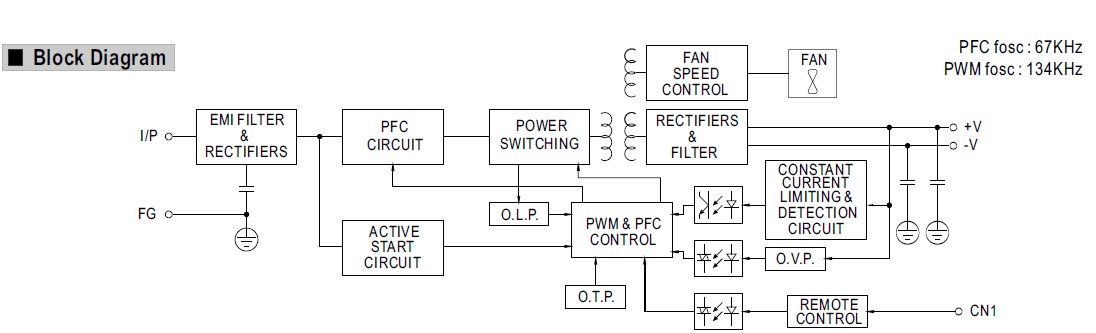

SP-200-24 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
SP-200-24
SP-200-24

Mean Well

Linear and Switching Power Supplies 200W 24V 8.4A W/ PFC Function

Data Sheet

0-1: $42.11
1-10: $38.84
10-20: $35.97
20-50: $35.05
