Product Summary

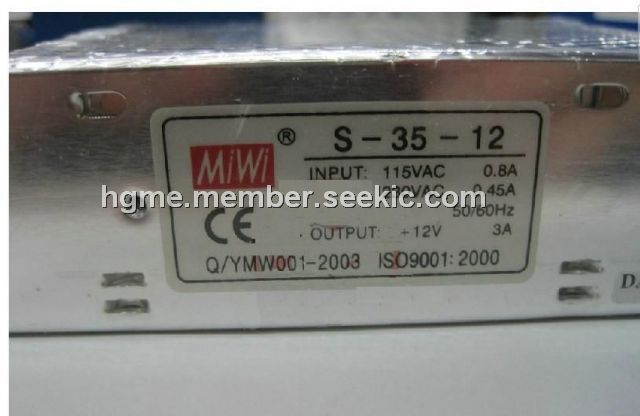

The S-35-12 is a 35W Single Output Switching Power Supply.
Parametrics
S-35-12 absolute maximum ratings: (1)DC VOLTAGE: 12V; (2)RATED CURRENT: 3A; (3)CURRENT RANGE: 0 to 3A; (4)RATED POWER: 36W; (5)SETUP, RISE TIME: 200ms; (6)HOLD TIME (Typ.): 36ms at full load; (7)VOLTAGE RANGE: 85 to 132VAC; (8)FREQUENCY RANGE: 47 to 63Hz.
Features
S-35-12 features: (1)AC input range selected by switch; (2)Protections: Short circuit / Overload / Over voltage; (3)Forced air cooling by built-in DC fan; (4)100% full load burn-in test; (5)Fixed switching frequency at 60KHz; (6)Low cost; (7)High reliability; (8)1 years warranty.
Diagrams
