Product Summary

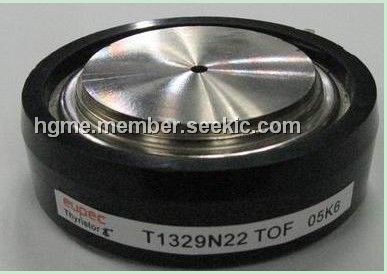

The T1329N22TOF is an EUPEC SCR Thyristor. Applications include: DC motor control, NC equipment, AC motor control, Contactless switches, Electric furnace temperature control, Light dimmers, Welders.
Parametrics
T1329N22TOF specifications: (1)Package: 4T-7526; (2)Type: PCT; (3)Repetitive Peak Reverse Voltage: 2200 V; (4)Maximum Holding Current: 300 mA; (5)Rated Average On-State Current: 1655 A; (6)Surge Current Rating: 26500 A; (7)Peak On-State Voltage: 1.65@3000A V; (8)Repetitive Peak Off-State Current: 200 mA; (9)Maximum Gate Trigger Voltage: 2.2 V; (10)Maximum Gate Trigger Current: 250 mA; (11)Operating Temperature: -40 to 125 ℃; (12)Mounting: Screw.
Features
T1329N22TOF features: (1)Hermetic metal case with ceramic insulator; (2)Capsule package for double sided cooling; (3)Shallow design with single sided cooling; (4)International standard case; (5)Off-state and reverse voltages up to 1800V.

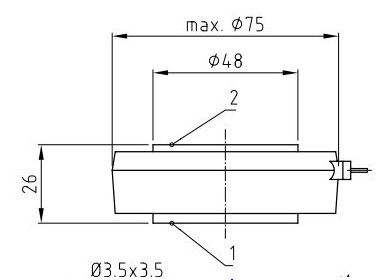

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 T1329N22TOF |
Infineon Technologies |
SCR Modules 2.2KV 26.5KA |
Data Sheet |
Negotiable |
|
||||
|
T1329N22TOF VT |
Infineon Technologies |
SCRs PCT 2200V 1329A |
Data Sheet |
Negotiable |
|
||||
