Product Summary

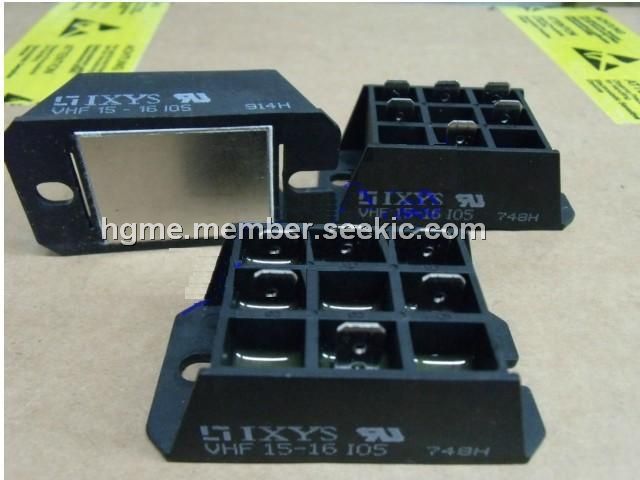

The VHF15-16IO5 is a Half Controlled Single Phase Rectifier Bridge. The applications of the VHF15-16IO5 are: Supply for DC power equipment, DC motor control.

Parametrics

VHF15-16IO5 absolute maximum ratings: (1)IdAV TK = 85℃, module: 15 A; (2)IdAVM, module: 21 A; (3)IFRMS, ITRMS per leg: 15 A; (4)VRGM: 10 V.

Features

VHF15-16IO5 features: (1)Package with DCB ceramic base plate; (2)Isolation voltage 3600 V~; (3)Planar passivated chips; (4)1/4" fast-on terminals; (5)UL registered E 72873.

Diagrams

VHF15-16IO5 circuit
