2MBI300TC-060-01

IGBT MODULE, 600 V, 300 A, 860 W, 2MBI300TC-060-01

Rated 5 Rating 5 | reviews | Write a review

Price:: US $50.00~100.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $50.00~100.00

PartNumber:: 2MBI300TC-060-01

Brand:: Fuji Electric - FE | Pack: DIP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Mark's store

(China (Mainland))

2000

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-06-21

From Other Seller

Part Number:2MBI300TC-060-01
US $50.00 - 100.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
ALC662

US $0.80 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

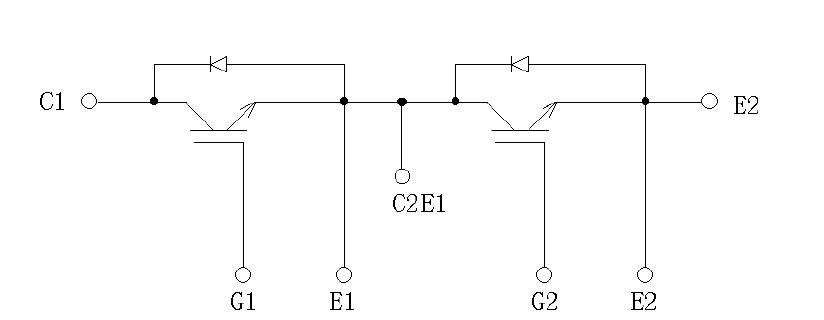

The 2MBI300TC-060-01 is an IGBT module.

Parametrics

2MBI300TC-060-01 absolute maximum ratings: (1)Collector-Emitter voltage VCES Ic=1mA: 600 V; (2)Gate-Emitter voltage VGES: ±20 V; (3)Collector current Ic Duty=100 %: 300 A; (4)Collector current Ic pulse 1ms: 600 A; (5)Collector current IF Duty=75 %: 300 A; (6)Collector current IF pulse 1ms: 600 A; (7)Collector Power Dissipation Pc: 860 W; (8)Junction temperature Tj: 150 ℃; (9)Storage temperature Tstg: -40~ +125 ℃; (10)Isolation voltage(*1) Viso AC : 1min.: 2500 V.

Features

2MBI300TC-060-01 features: (1)Zero gate voltage Collector current ICES VGE = 0 V, VCE = 600 V: 2.0 mA; (2)Gate-Emitter leakage current IGES VCE = 0 V, VGE = ±20 V: 400 nA; (3)Gate-Emitter threshold voltage VGE(th) VCE = 20 V, Ic = 300 mA: 6.2 6.7 7.7 V; (4)Reverse recovery time trr IF = 300 A: 0.3 μs; (5)Allowabe avalanche energy during short circuit cutting off PAV Ic > 600A, Tj = 125℃: 170 mJ.
