Product Summary

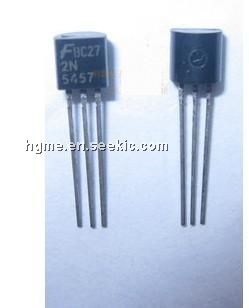

The 2N5457 is an N-Channel Junction Field Effect Transistor. It is designed for audio and switching applications.
Parametrics
2N5457 absolute maximum ratings: (1)Drain.Source Voltage VDS: 25 Vdc; (2)Drain-Gate Voltage VDG: 25 Vdc; (3)Reverse Gate-Source Voltage VGSR: -25 Vdc; (4)Gate Current IG: 10 mAdc; (5)Total Device Dissipation @ TA = 25℃ PD: 310 mW; Derate above 25℃: 2.82 mW/℃; (6)Operating Junction Temperature TJ: 135 ℃; (7)Storage Temperature Range Tstg: -65 to +150 ℃.
Features
2N5457 features: (1)N-Channel for Higher Gain; (2)Drain and Source Interchangeable; (3)High AC Input Impedance; (4)High DC Input Resistance; (5)Low Transfer and Input Capacitance; (6)Low Cross-Modulation and Intermodulation Distortion; (7)Unibloc Plastic Encapsulated Package; (8)Pb-Free Packages are Available
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 2N5457 |
Central Semiconductor |
JFET N-Ch/AMP |
Data Sheet |
|
|
||||||||||
 |
2N5457_D26Z |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
|
2N5457_D27Z |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
|
2N5457_D74Z |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
|
2N5457_D74Z_Q |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
|
2N5457_D75Z |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
|
2N5457_L99Z |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
|
2N5457_Q |
Fairchild Semiconductor |
JFET N-Channel Transistor General Purpose |
Data Sheet |
Negotiable |
|
||||||||||
