Product Summary

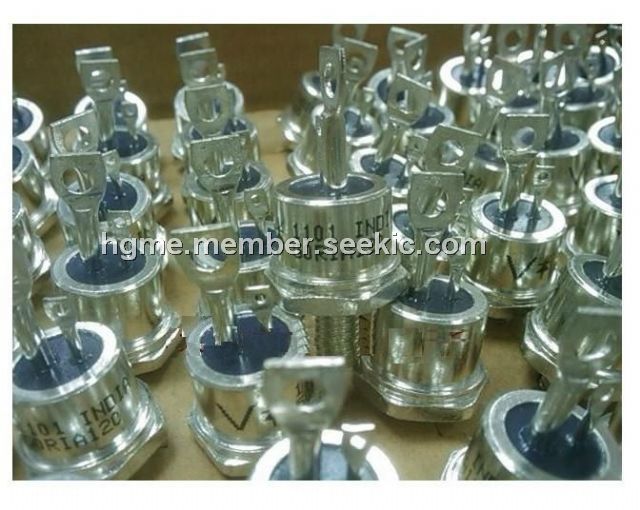

The 50RIA120 is a medium power thyristor. The applications of the 50RIA120 include Phase control applications in converters, Lighting circuits, Battery charges, Regulated power supplies and temperature and speed control circuit . It can be supplied to meet stringent military, aerospace and other high-reliability requirements.

Parametrics

50RIA120 absolute maximum ratings: (1)Maximum peak gate power: 10 W at TJ = TJ max, tp ≤ 5ms; (2)Maximum average gate power: 2.5 W; (3)peak positive gate current: 2.5 A; (4)Maximum peak positive gate voltage: 20 V; (5)Maximum peak negative gate voltage: 10 V; (6)DC gate current required to trigger: 250 mA at TJ = - 40℃, 100 mA at TJ = 25℃, 50 mA at TJ = 125℃; (7)DC gate voltage to trigger: 0.2 V at TJ = TJ max.

Features

50RIA120 features: (1)High current rating; (2)Excellent dynamic characteristics; (3)dv/dt = 1000V/μs option; (4)Superior surge capabilities; (5)Standard package; (6)Metric threads version available; (7)Types up to 1600V VDRM/ VRRM.

Diagrams

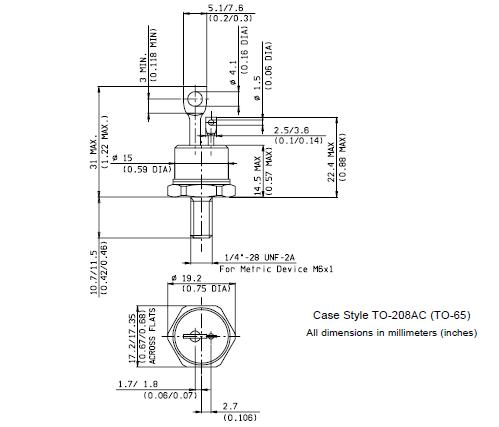

50RIA120 diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
50RIA120
50RIA120


SCR MED POWER 1200V 50A TO-65

Data Sheet

0-1: $14.43
1-10: $13.35
10-25: $12.26
25-100: $11.36
100-250: $10.46
250-500: $9.92
500-1000: $9.38
1000-2500: $9.09
2500-5000: $8.84
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
50RIA10
50RIA10


SCR MED POWER 100V 50A TO-65

Data Sheet

0-100: $7.02
50RIA100
50RIA100


SCR MED POWER 1000V 50A TO-65

Data Sheet

0-100: $9.49
50RIA120
50RIA120


SCR MED POWER 1200V 50A TO-65

Data Sheet

0-1: $14.43
1-10: $13.35
10-25: $12.26
25-100: $11.36
100-250: $10.46
250-500: $9.92
500-1000: $9.38
1000-2500: $9.09
2500-5000: $8.84
50RIA160MS90
50RIA160MS90

Vishay Semiconductors

SCRs 1600 Volt 50 Amp

Data Sheet

Negotiable
50RIA20
50RIA20


SCR MED POWER 200V 50A TO65

Data Sheet

0-1: $9.28
1-10: $8.43
10-25: $7.80
25-100: $7.17
100-250: $6.54
250-500: $6.12
500-1000: $5.61
1000-2500: $5.38
2500-5000: $5.23
50RIA40
50RIA40


SCR MED POWER 400V 50A TO-65

Data Sheet

0-100: $8.10
