Product Summary

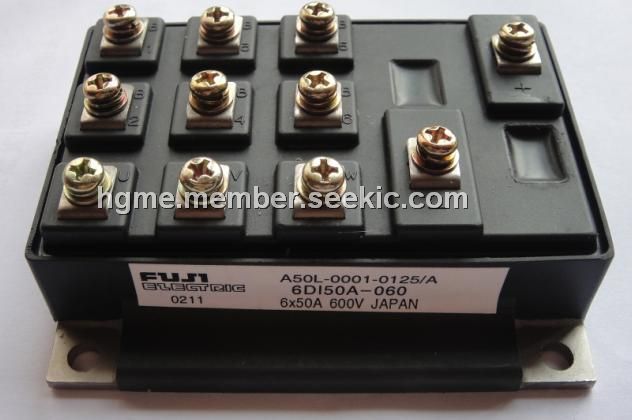

The 6DI50A-060 is a power transistor module. Application of the 6DI50A-060 are AC motor controls, air conditioners.
Parametrics
6DI50A-060 absolute maximum ratings: (1)VcBO: 600 V; (2)VCEO: 600 V; (3)VCEO(SUS): 450 V; (4)VEBO: 6 V; (5)lc: 50 A; (6)ICP: 100 A; (7)_ lc: 50 A; (8)IB: 3 A; (9)I BP: 6 A; (10)Pc: 230 W; (11)Pc: 1380 W; (12)Tj: + 150 ℃; (13)Tstg: - 40-b 125 ℃; (14)rm: 450 g; (15)Viso: 2500 V; (16)Mounting ^ 1: 35 kg-cm; (17)Terminals ^2 17 kg-cm.
Features
6DI50A-060 features: (1)Including Free Wheeling Diode; (2)High DC Current; (3)Gain Insulated Type.
Diagrams
