Product Summary

The 70HF120 is a standard recovery diode. Typical applications of the 70HF120 are battery charges, converters, power supplies, machine tool controls.

Parametrics

70HF120 absolute maximum ratings: (1)IF(AV)@ TC 140 ℃: 70 A; (2)IFSM @50Hz 1200 A, @ 60Hz 1250 A; (3)I2t @50Hz 7100 KA2s, @ 60Hz 6450 KA2s; (4)VRRM range: 100 to 1200 V; (5)TJ: -65 to 180 ℃.

Features

70HF120 features: (1)High surge current capability; (2)Designed for a wide range of applications; (3)Stud cathode and stud anode version; (4)Leaded version available; (5)Types up to 1600V VRRM.

Diagrams

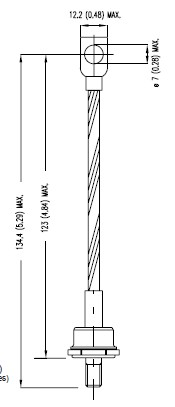

70HF120 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
70HF120
70HF120

DIODE FAST REC 1200V 70A DO-5
Data Sheet
0-1: $8.57
1-10: $7.79
10-25: $7.20
25-100: $6.62
100-250: $6.04
250-500: $5.65
500-1000: $5.18
1000-2500: $4.96
2500-5000: $4.83
