Product Summary

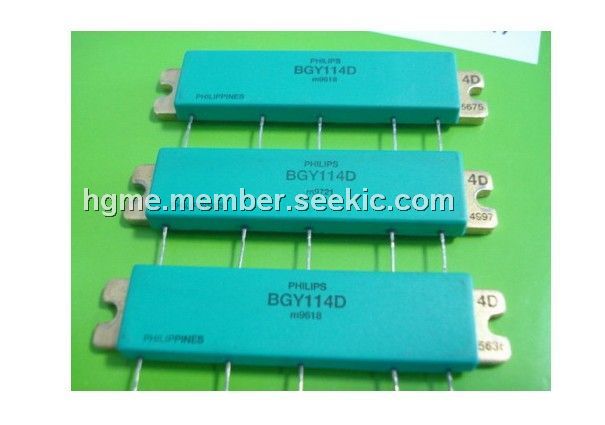

The BGY114D is a five-stage UHF amplifier module in a SOT278B package. Each module consists of 5 NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate. The application of the BGY114D is Mobile Radio equipment operating in the 800 to 870 and 890 to 950 MHz frequency ranges.
Parametrics
BGY114D absolute maximum ratings: (1)DC supply voltage:9 V; (2)DC control voltage:16 V; (3)input drive power:3 mW; (4)load power:10 W; (5)storage temperature:-40 to +100℃; (6)operating mounting base temperature:-30 to +100℃.
Features
BGY114D features: (1)12.5 V nominal supply voltage; (2)6 W output power; (3)Easy control of output power by DC voltage.
Diagrams
 |
