Product Summary

The CM200DY-24A is a Mitsubishi IGBT module.

Parametrics

CM200DY-24A absolute maximum ratings: (1)Junction Temperature Tj: -40 to 150 ℃; (2)Storage Temperature Tstg: -40 to 125 ℃; (3)Collector-Emitter Voltage (G-E SHORT) VCES: 1200 Volts; (4)Gate-Emitter Voltage (C-E SHORT) VGES: ±20 Volts; (5)Collector Current (TC = 25℃) IC: 200 Amperes; (6)Peak Collector Current ICM: 400* Amperes; (7)Emitter Current** (TC = 25℃) IE: 200 Amperes; (8)Peak Emitter Current** IEM: 400* Amperes; (9)Maximum Collector Dissipation (TC = 25℃) Pc: 1340 Watts; (10)Mounting Torque, M5 Main Terminal: 2.5 to 3.5 N · m; (11)Mounting Torque, M6 Mounting: 3.5 to 4.5 N · m; (12)Weight: 310 Grams.

Features

CM200DY-24A features: (1)IC: 200A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

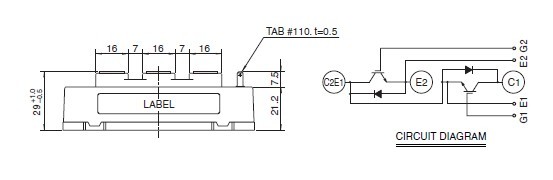

CM200DY-24A diagram
