Product Summary

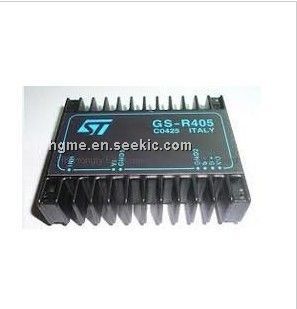

The GS-R405/2 is a kind of small sized high current, high voltage step-down switching regulator. The integral heatsink allows a large power handling capability and it provides also an effective shielding to minimize EMI.
Parametrics
GS-R405/2 absolute maximum ratings: (1)Vi, DC Input Voltage: 42 V; (2)Io, Output Current: 4 A; (3)Tstg, Storage Temperature Range: -40 to +105℃; (4)Tcop, Operating Case Temperature Range: -20 to +85℃.
Features
GS-R405/2 features: (1)MTBF in excess of 500,000 hours; (2)4A max output current; (3)40V max input voltage; (4)4V max drop-out voltage; (5)Soft start; (6)Non-latching short circuit protection; (7)Crow-bar output overvoltage protection.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 GS-R405/2 |
STMicroelectronics |
Switching Converters, Regulators & Controllers 5.1 Volt Step-Down |
Data Sheet |
Negotiable |
|
||||
|
GS-R405S |
STMicroelectronics |
Switching Converters, Regulators & Controllers 5.0 Volt Step-Down |
Data Sheet |
Negotiable |
|
||||
