Product Summary

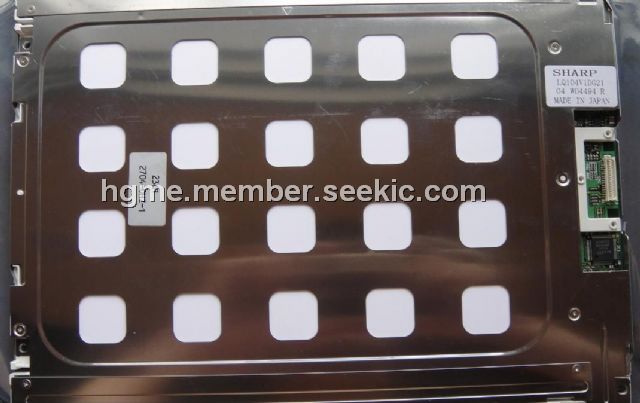

The LQ104V1DG21 is a TFT-LCD Module. The LQ104V1DG21 is a color active matrix LCD module incorporating amorphous silicon TFT (Thin Film Transistor). The LQ104V1DG21 is composed of a color TFT-LCD panel, driver ICs, control circuit and power supply circuit and a backlight unit.
Parametrics
LQ104V1DG21 absolute maximum ratings: (1)Input voltage VI Ta=25℃: 0.3℃ to Vcc+0.3℃; (2)+5V supply voltage Vcc Ta=25℃: 0 to 6V; (3)Storage temperature Tstg: -30 TO 70℃; (4)Operating temperature (Ambient) Topa: 10℃.
Features
LQ104V1DG21 features: (1)Permissive input ripple voltage VRF: 100 mVp-p; (2)Input voltage (Low) VIL: 0.3Vcc; (3)Input voltage (High) VIH: 0.7Vcc; (4)Lamp current IL: 2.0 6.0 6.5 mArms; (5)Lamp frequency FL: 20 60 KHz.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LQ104V1DG21 |
Sharp Microelectronics |
TFT Displays & Accessories 10.4" TFT (2 x CCFT) VGA |
Data Sheet |
Negotiable |
|
||||||
