Product Summary
The MUBW35-12E7 is an IGBT. Applications of the MUBW35-12E7 are: Input from single or three phase grid, Three phase synchronous or asynchronous motor, electric braking operation.
Parametrics
MUBW35-12E7 absolute maximum ratings: (1)IFAV TC = 80℃; sine 180°: 30 A; (2)IDAVM TC = 80℃; rectangular; d = 1/3; bridge: 80 A; (3)IFSM TVJ = 25℃; t = 10 ms; sine 50 Hz: 300 A; (4)Ptot TC = 25℃: 100 W.
Features
MUBW35-12E7 features: (1)High level of integration - only one power semiconductor module required for the whole drive; (2)Inverter with NPT IGBTs; (3)Epitaxial free wheeling diodes with Hiperfast and soft reverse recovery; (4)Industry standard package with insulated copper base plate and soldering pins for PCB mounting; (5)Temperature sense included.

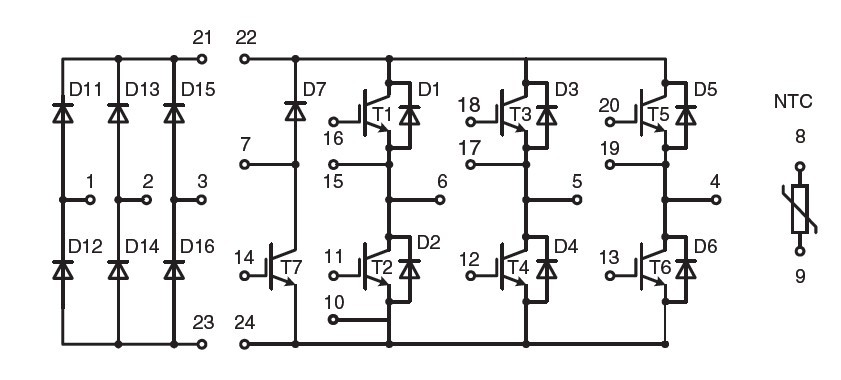

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MUBW35-12E7 |
Ixys |
Discrete Semiconductor Modules 35 Amps 1200V |
Data Sheet |
Negotiable |
|
||||||
