Product Summary

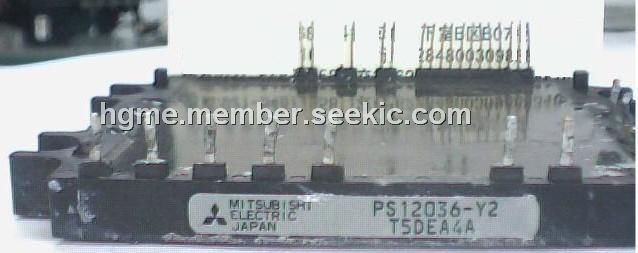

The PS12036-Y2 is an Intelligent Power Module suitable for Acoustic noise-less 1.5kW/AC400V Class 3 Phase inverter and other motor control applications.
Parametrics
PS12036-Y2 absolute maximum ratings: (1)Supply voltage: 900 V; (2)Supply voltage (surge): 1000 V; (3)Each IGBT collector-emitter static voltage: 1200 V; (4)Each IGBT collector-emitter switching voltage: 1200 V; (5)Each IGBT collector current: ±15 (±30) A.
Features
PS12036-Y2 features: (1)Converter bridge for 3 phase AC-to-DC power conversion; (2)3 phase IGBT inverter bridge configured by the latest 3rd. generation IGBT and diode technology.
Diagrams
 |
