Product Summary

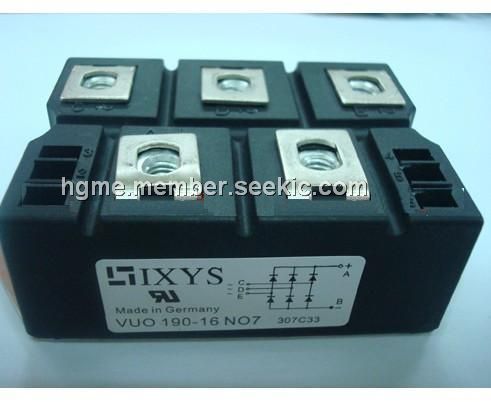

The VUO190-16NO7 is a Three Phase Rectifier Bridge. The applications of the VUO190-16NO7 include supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies and Field supply for DC motors.
Parametrics
VUO190-16NO7 absolute maximum ratings: (1)IdAV: 248 A at TC = 100℃, module; (2)IFSM: 2800 A when TVJ = 45℃; t = 10 ms (50 Hz), sine; 3300 A at VR = 0 t = 8.3 ms (60 Hz), sine; 1600 A at TVJ = TVJM t = 10 ms (50 Hz), sine; 1800 A at VR = 0 t = 8.3 ms (60 Hz), sine; (3)I2t: 39200 A2s at TVJ = 45℃ t = 10 ms (50 Hz), sine; 16200 A2s at VR = 0 t = 8.3 ms (60 Hz), sine; 12800 A2s at TVJ = TVJM t = 10 ms (50 Hz), sine; 13600 A2s at VR = 0 t = 8.3 ms (60 Hz), sine; (4)TVJ: -40 to +150℃; (5)TVJM: 150℃; (6)Tstg: -40 to +125℃; (7)VISOL: 2500 V~ at 50/60 Hz, RMS t = 1 min; 3000 V~ at IISOL≤ 1 mA t = 1 s; (8)Weight: typ. 270 g.
Features
VUO190-16NO7 features: (1)Package with screw terminals; (2)Isolation voltage 3000 V~; (3)Planar passivated chips; (4)Blocking voltage up to 1800 V; (5)Low forward voltage drop.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VUO190-16NO7 |
Ixys |
Bridge Rectifiers 190 Amps 1600V |
Data Sheet |
Negotiable |
|
||||
