Product Summary

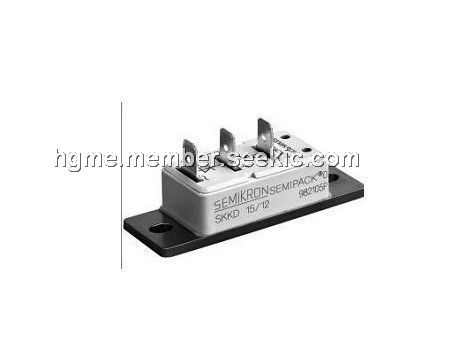

The SKKD15/12 is a rectifier diode module. Typical applications of the SKKH132/18E are Non-controllable rectifiers for AC/AC converters, Line rectifiers for transistorized AC motor controllers, Field supply for DC motors SKKE: Free-wheeling diodes.
Parametrics
SKKD15/12 absolute maximum ratings: (1)IFAV sin. 180; Tc = 85(100)℃: 14(10)A; (2)Id P13A/125; T_ = 45 ℃; B2 / B6: 18/22,5A; (3)vF Tvj = 25 ℃; lF = 75 A: max. 1,85V; (4)V(TO)Tvj 125 ℃: max. 0,85V; (5)IRD Tyj= 125 ℃; VRD = VRRM: max. 2,5mA; (6)Rth(j-c)per diode / per module: 2/1K/W; (7)Rth(c-s)per diode / per module: 0,2/0,1K/W; (8)TV]: -40 : + 125℃; (9)TSt: -40 : + 125℃.
Features
SKKD15/12 features: (1)Heat transfer through aluminium oxide ceramic isolated metal baseplate; (2)Hard soldered joints for high reliability; (3)UL recognized, file no. E 63532.
