Product Summary

The SKT160/08D is a capsule thyristor. The typical applications of the device are DC motor control, controlled rectifiers, AC controllers and soft starters for AC motors.

Parametrics

SKT160/08D absolute maximum ratings: (1)ITAV: 391A; (2)ID: 390A; (3)VT: 165V.

Features

SKT160/08D features: (1)hermetic metal case with epoxiy insulator; (2)capsule package for double sided cooling; (3)shallow design with single sided cooling; (4)off-state and reverse votlages up to 1800V; (5)amplifying gate.

Diagrams

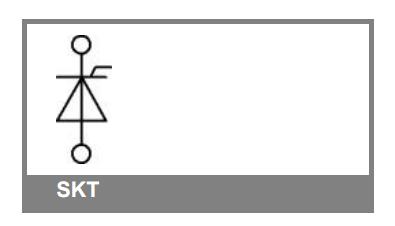

SKT160/08D block diagram
